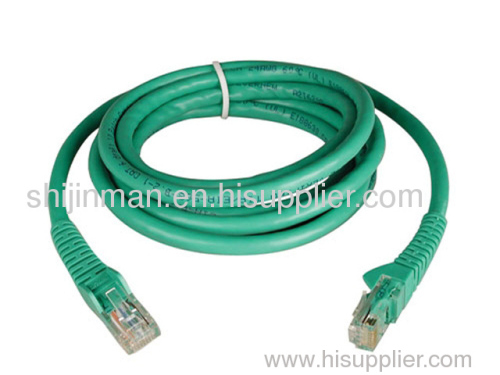

LAN Cable With 0.51mm Bare Copper Conductor cat5 cat5e cat6

Price:	0.1~0.2 USD
Payment Terms:	T/T
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HTW NO.1

Production Capacity: 10000pieces/week

Delivery Date: 20days

Means of Transport: Ocean

Packing: cartons

Brand Name: GOLD

Conductor: 0.51mm bare copper
Insulation: 0.91mm HDPE
No of pairs: 4 pairs twisted
Jacket: 5.2mm PVC

LAN cable
Construction:
Conductor: 0.51mm bare copper
Insulation: 0.91mm HDPE
No of pairs: 4 pairs twisted
Jacket: 5.2mm PVC
Characteristics:
Impedance: 100+/-15 Ohms
Velocity of propagation: 65%
SRL: >=20dB (1 to 100MHz) and >=17dB (100to 350MHz)

Attenuation 20A° :
1MHz, 2.0dB/100M
4MHz, 4.1dB/100M
8MHz, 5.8dB/100M
10MHz, 6.5dB/100M
16MHz, 8.2dB/100M
20MHz, 9.3dB/100M
25MHz, 10.4dB/100M
25MHz, 11.6dB/100M
5MHz, 17.0dB/100M
100MHz, 22.0dB/100M
155MHz, 28.1dB/100M
200MHz, 32.4dB/100M
310MHz, 41.8dB/100M
350MHz, 44.9dB/100M< /UL>
